5Nm Tactile Feedback Device Where To Buy Contact Us

LORD 5Nm TFD^® steering units are designed to meet the needs of a growing trend, the adoption of smaller steering wheels. Many industrial and off-highway equipment OEMs are now considering more innovative and flexible steering interfaces. To meet the various needs of these applications, we have developed a standard product line of 5Nm devices.

We have a diverse portfolio of TFD steering units to satisfy a variety of customer steer-by-wire (SbW) requirements. Our portfolio includes devices capable of producing resistive steering torque ranging from 5Nm to 20Nm. For more TFD products visit SbW Tactile Feedback Devices.

What is a Tactile Feedback Device and How Does it Work?

The TFD steering unit is a key component of fully-electric and electro-hydraulic SbW systems. Click here to learn more about what it is, and how it works.

DOCUMENTS

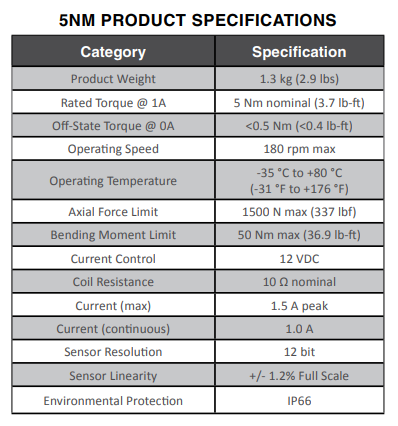

5Nm TFD Steering Units - Features & Specifications

Standard Features

• 2-channel dual-redundant, non-contact, Hall Effect steering sensor
• Sensor output (three options)
• Standard digital (PWM) multi-rotational code
• Analog code suitable for controllers with limited digital I/O
• Analog multi-rotational code with no discontinuities in the signal
• Shaft connection (two standard options)
• Flat
• Cross-drilled
• Deutsch DTM04-6P connector
• 20 AWG wire
• 200mm cable length
• 10 Ohm coil

Customized Solutions

We have designed and manufactured various customized devices, which are tuned to specific customer requirements. These designs may include the following unique features:

• Quad-Redundant steering sensors
• Housings
• Shaft connections
• Cable connections and length
• Coil resistance
• Sensor outputs
• CAN-bus enabled devices
• Enables more sophisticated steering algorithms using various vehicle inputs
• Enhances the steering feel of a vehicle in ways not possible with previous technology
