Industrial Micro-Mounts™ Where to Buy

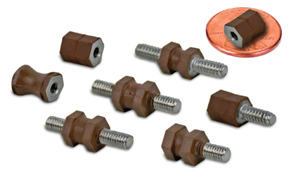

The unique Micro-Mount™ Series are high-performance vibration isolators small enough and soft enough to protect individual electronic components allowing for vibration isolation at the circuit board level. Micro-Mounts can be used as a stand-alone solution or to augment performance of a full LORD^® vibration isolation system. These small, flexible vibration isolation mounts are used successfully on GPS oscillators in satellites, military aircraft, downhole oil & gas equipment, and many more demanding applications which require ruggedized electronics.

Made of BTR^® (Broad Temperature Range) silicone bonded to stainless-steel, these elastomeric vibration mounts are ideal for applications in harsh environments - such as those that require consistent performance at extreme temperatures. And, the combination of this unique, high-end silicone with stainless-steel components assures the easy installation of these vibration isolators in a wide range of applications.

Micro-Mounts also function as terrific shock mounts – protecting electronic components in demanding applications and product qualification drop testing. The mounts have been shown to reduce board-level acceleration levels by up to 200 times when compared to hard-mounting electronic components.  Whether used for shock, vibration, or a combination of the two, Micro-Mounts are the isolator of choice when electronic components are faced with severe applications that require extended service life.

Features & Benefits - Micro-Mount Vibration Isolation Mounts

• Individual mounts support 0.1 lb
• Standard hardware
• Easy installation
• Temperature rated to 350°F continuous operation (400°F peak)

Applications - Micro-Mount Vibration Isolation Mounts

• Printed circuit boards (PCB)
• Hard disk drives / hard drives (HDD)
• Small fans and blowers
• Optoelectronics
• ​Sensitive electronic components and devices
